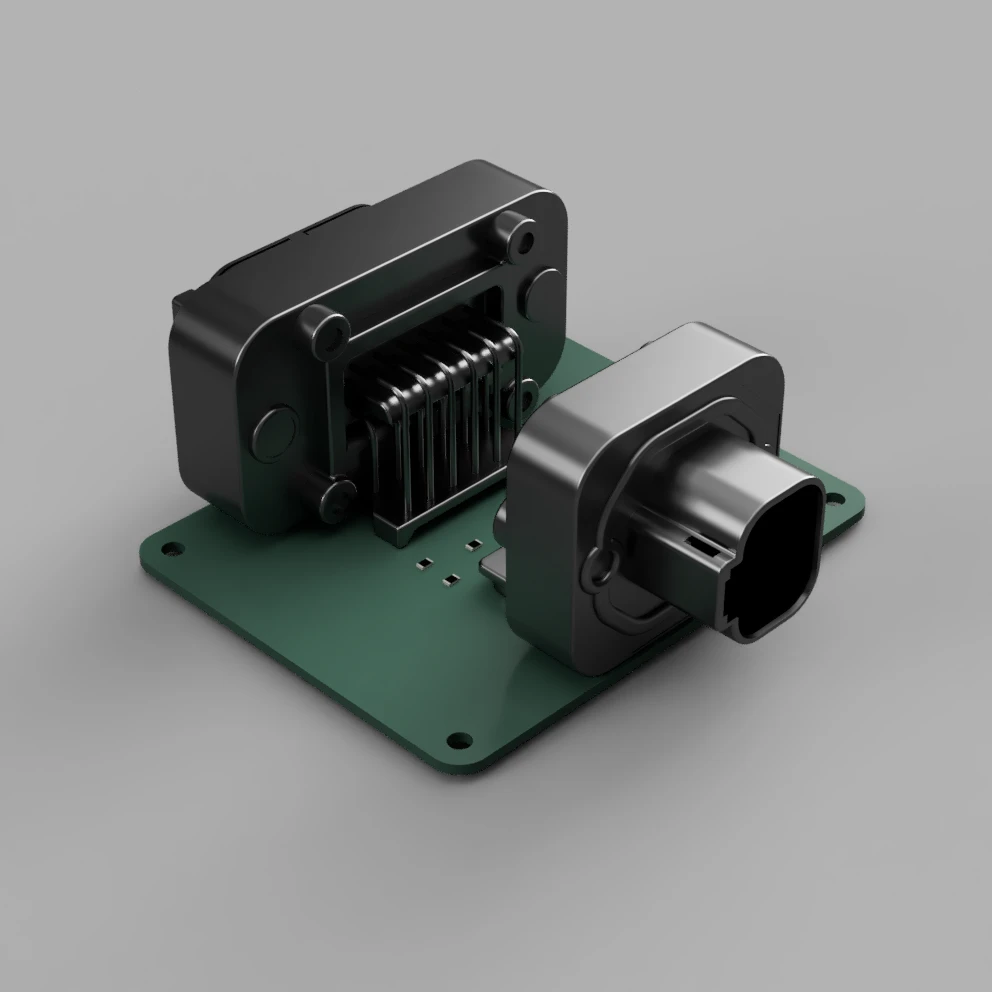

AIM SW3 Breakout Board
€50
PCB to wire an AIM SW3 physical buttons to 2 analog inputs
Bare PCB, you will need to solder in your resistors and connector headers
Choose an option
Details
- Allows you to use 2 analog inputs to wire in the 6 physical buttons of the SW3
- Uses 1 x DTM13-12PA, 1 x DT13-4P, 8 resistors (2 2.5k pull-up, 6 switches resistors)
- Provided with a non waterproof 3D printed box
- Pinout will be provided, requires 2 AIN, +5V and Sensor Ground from your ECU
